• Wheels, 16" (40.6 cm) painted aluminum
• Tires, P205/70R16 all-season, blackwall
• Wheel, spare, 16" (40.6 cm) steel
• Tire, compact spare
• Moldings, side glass (Black.)
• Headlamps, halogen with automatic exterior lamp control
• Mirrors, outside power-adjustable, body-color, manual-folding
• Windshield, solar absorbing
• Windshield, acoustic laminated
• Glass, solar absorbing
• Wipers, front intermittent
• Wiper, rear intermittent
• Door handles, body-color

• Chevrolet MyLink radio, 7" diagonal color touch-screen, AM/FM stereo with seek-and-scan and digital clock, includes Bluetooth® streaming audio for music and select phones; Pandora, TuneIn radio, Stitcher and Siri Eyes Free for compatible smartphones
• Audio system feature, 6-speaker system

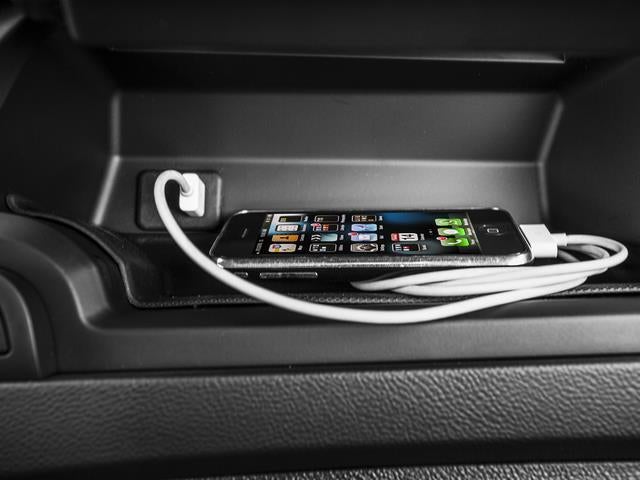

• Audio system feature, USB port and auxiliary input jack
• OnStar with 4G LTE and built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds, includes 3GB or 3 months OnStar Data Trial (whichever comes first) (Available 4G LTE Wi-Fi requires compatible mobile device, active OnStar subscription and data plan after trial.)

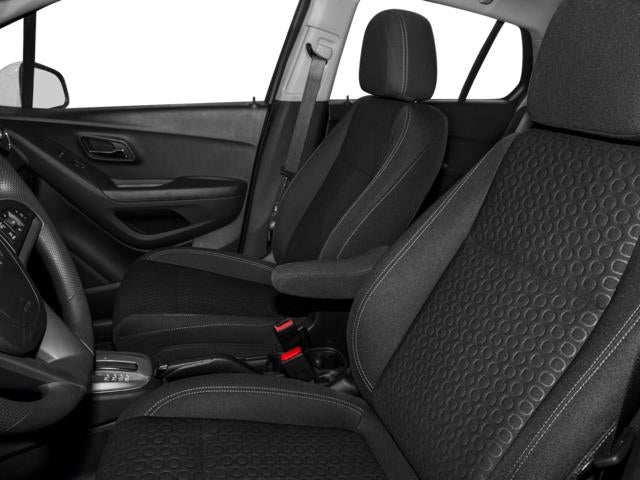

• Seats, front bucket with driver power lumbar
• Seat trim, cloth
• Seat adjuster, driver 4-way manual
• Seat adjuster, front passenger 2-way manual
• Seatback, front passenger flat-folding
• Map pocket, driver seatback
• Head restraints, 2-way adjustable (up/down), front
• Armrest, driver seat

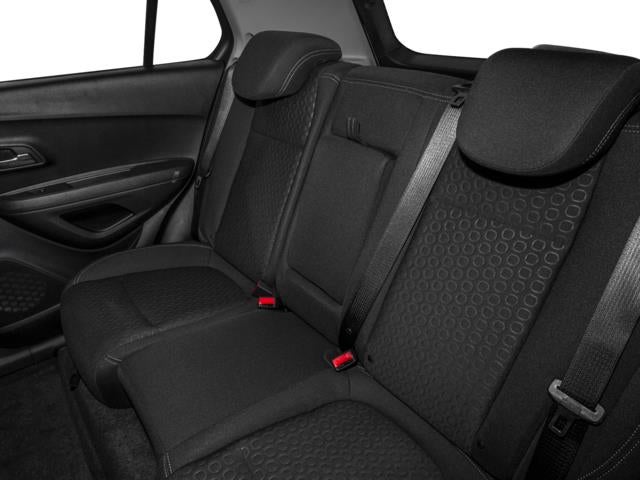

• Seat, rear 60/40 split-bench, folding
• Floor mats, color-keyed and carpeted front and rear
• Steering column, manual tilt and telescoping

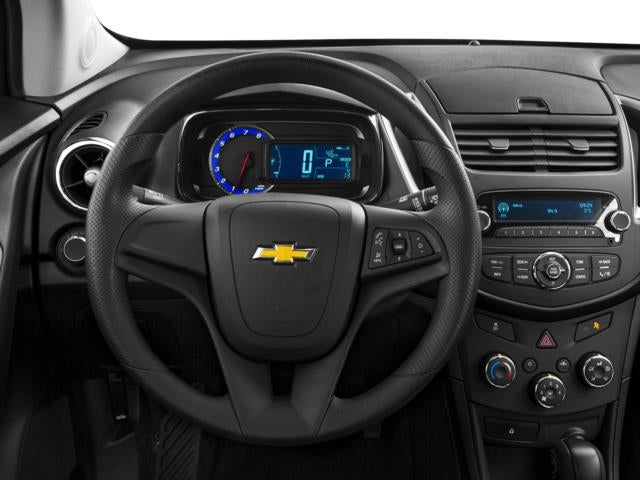

• Steering wheel, 3-spoke
• Steering wheel controls, mounted audio and phone interface controls
• Instrumentation with analog tachometer; digital speedometer, odometer, trip odometer and fuel gauge
• Driver Information Center 3.5" monochrome display, digital readouts, Ice Blue back lighting
• Compass display
• Door locks, power programmable
• Remote Keyless Entry with panic alarm
• Key, primary foldable, additional foldable

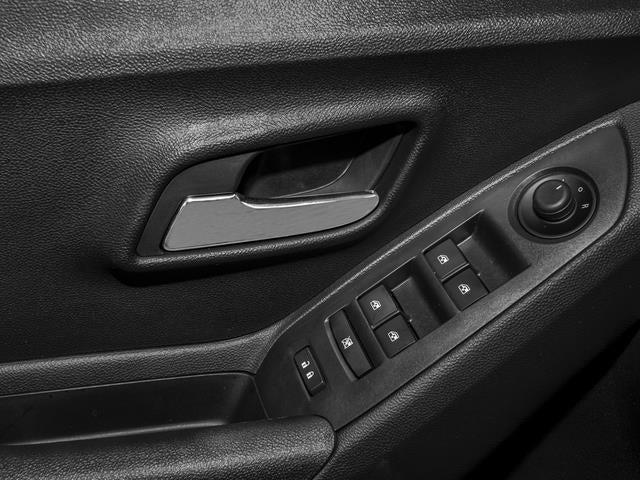

• Windows, power with driver Express-Up/Down
• Theft-deterrent system, unauthorized entry
• Air conditioning, single-zone manual
• Air filter, particle
• Heater duct, rear, floor
• Defogger, rear-window, electric

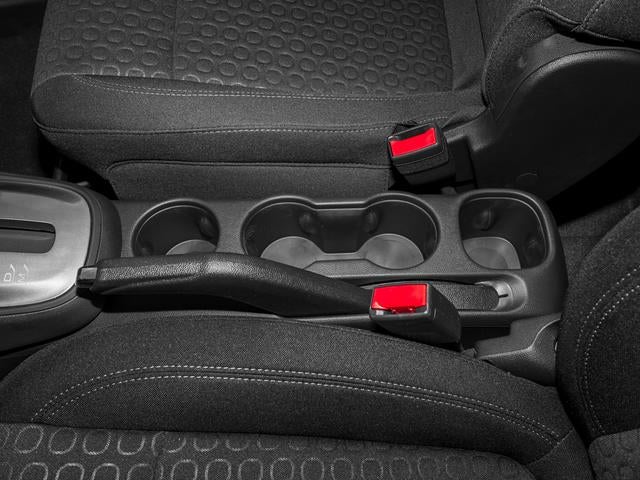

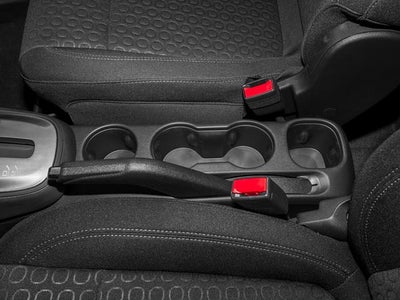

• Cup holders, 4 front in console and 2 rear in center armrest
• Power outlet, auxiliary, 12-volt

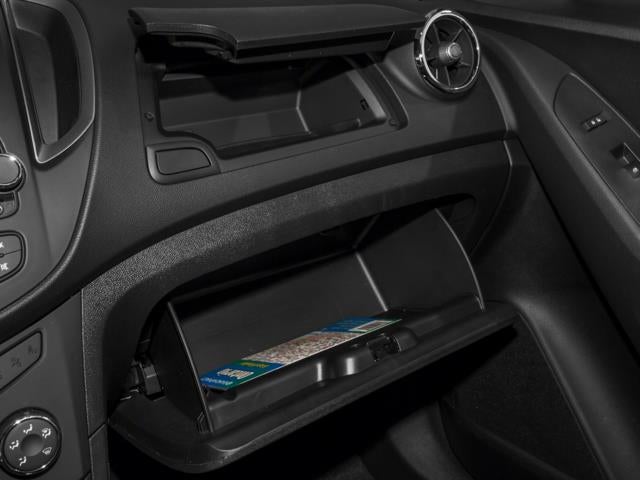

• Storage includes covered bin on top of center stack, large glove box, upper glove box, open-bin cubbies on each side of center stack, center stack lower bin and pull-out bin on driver-side of instrument panel
• Mirror, inside rearview manual day/night
• Visors, driver and front passenger vanity mirrors, covered
• Assist handles, driver, front passenger and rear outboard includes coat hooks on rear handles
• Lighting, interior with front reading lights

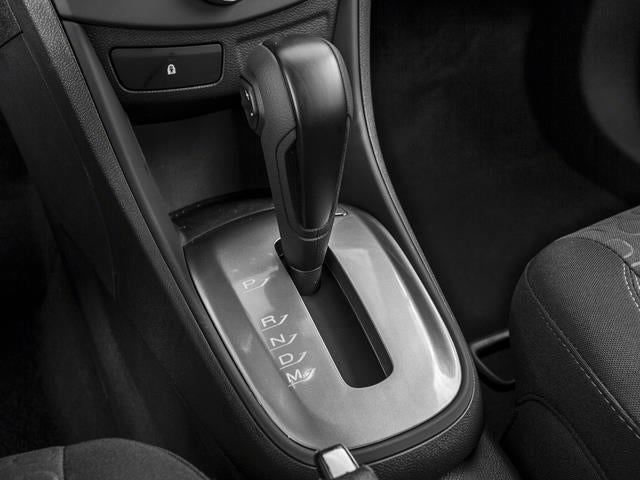

• Shift knob, satin silver and chrome
• Cargo security cover, rigid, removable
• Cargo storage, tray under rear floor
• Cargo tie downs, 4
• Lighting, cargo area, dome
• OnStar RemoteLink App

• StabiliTrak, stability control system includes Traction Control
• Tire Pressure Monitor System
• Daytime Running Lamps, reduced intensity low beam
• Air bags, 10 total, frontal and knee for driver and front passenger, side-impact seat-mounted and roof rail for front and rear outboard seating positions includes Passenger Sensing System (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar Guidance plan for 6 months including Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance, Turn-by-turn Navigation, Advanced Diagnostics and more (trial excludes Hands-Free Calling) (Visit www.onstar.com for coverage map, details and system limitations. Services may vary by model and conditions.)
• OnStar Basic plan for 5 years including limited RemoteLink mobile app services, Advanced Diagnostics and Dealer Maintenance Notification (Basic Plan available for 5 years from the date of vehicle delivery, and is transferable. Does not include Emergency, Security or Navigation services.)
• Rear Vision Camera
• Safety belts, 3-point rear outboard and center position lap belt
• Safety belt pretensioners, driver and front passenger, dual
• LATCH system (Lower Anchors and Top tethers for CHildren), for child safety seats
• Door locks, rear child security
• Knee protector, driver and front passenger, bolster

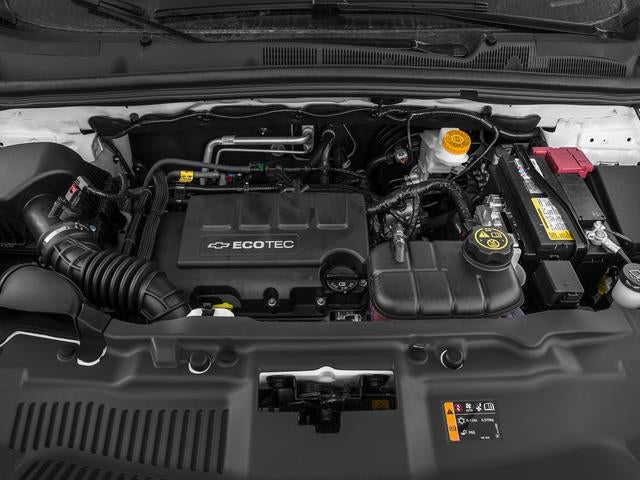

ENGINE, ECOTEC TURBO 1.4L VARIABLE VALVE TIMING DOHC 4-CYLINDER SEQUENTIAL MFI

• (138 hp [102.9 kW] @ 4900 rpm
• 148 lb-ft of torque [199.8 N-m] @ 1850 rpm) (STD)

• Vehicle
• EPA Classification: Special Purpose
• Mileage
• Fuel Economy Est-Combined (MPG): 27
• EPA Fuel Economy Est - City (MPG): 24
• EPA Fuel Economy Est - Hwy (MPG): 31
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): 130
• Cooling System
• Total Cooling System Capacity (qts): 6.9
• Weight Information
• Base Curb Weight (lbs): 3208
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): - TBD -
• Dead Weight Hitch - Max Tongue Wt. (lbs): - TBD -
• Wt Distributing Hitch - Max Trailer Wt. (lbs): - TBD -
• Wt Distributing Hitch - Max Tongue Wt. (lbs): - TBD -
• Suspension
• Suspension Type - Front: MacPherson Strut
• Suspension Type - Rear: Torsion Beam
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.8 x 1.0
• Rear Brake Rotor Diam x Thickness (in): 10.6 x 0.5
• Tires
• Front Tire Order Code: RAJ
• Rear Tire Order Code: RAJ
• Spare Tire Order Code: - TBD -
• Front Tire Size: P205/70R16
• Rear Tire Size: P205/70R16
• Spare Tire Size: Compact
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), Overall: 16.1
• Lock to Lock Turns (Steering): 2.7
• Turning Diameter - Curb to Curb (ft): 36.7
• Turning Diameter - Wall to Wall (ft): - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 14
• Exterior Dimensions
• Wheelbase (in): 100.6
• Length, Overall (in): 167.20
• Width, Max w/o mirrors (in): 69.90
• Height, Overall (in): 65.2
• Track Width, Front (in): 60.6
• Track Width, Rear (in): 60.6
• Min Ground Clearance (in): 6.2
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Liftover Height (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): 57.00
• Cargo Area Length @ Floor to Seat 2 (in): 29.30
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): 31.80
• Cargo Volume to Seat 1 (ft³): 48.4
• Cargo Volume to Seat 2 (ft³): 18.7
• Interior Dimensions
• Passenger Capacity: 5
• Passenger Volume (ft³): - TBD -
• Front Head Room (in): 39.60
• Front Leg Room (in): 40.80
• Front Shoulder Room (in): 54.10
• Front Hip Room (in): 51.70
• Second Head Room (in): 38.80
• Second Leg Room (in): 35.70
• Second Shoulder Room (in): 52.80
• Second Hip Room (in): 50.70
• Summary
• Vehicle Name: Chevrolet Trax
• Body Style: Sport Utility Vehicle
• Emissions
• EPA Greenhouse Gas Score: 6
• Tons/yr of CO2 Emissions @ 15K mi/year: 6.7
